Windows 7 installation Guide

First of all... System Requirements...

Microsoft states the minimum recommended specs for Windows 7:
• 1 GHz 32-bit or 64-bit processor
• 1 GB of system memory
• 16 GB of available disk space
• Support for DirectX 9 graphics with 128 MB memory (to enable the Aero theme)
• DVD-R/W Drive
• Internet access (to activate and get updates)

Beginning the Installation Process

When installing on a physical computer insert your Windows 7 DVD media into your DVD drive and reboot your computer. The CD/DVD should be your first boot device. if not change it from BIOS menu.
If you're asked to press a key to boot from DVD or CD, press any key. A black window will appear momentarily while the DVD content is read.

Note: These screenshots are taken from a Windows 7 Ultimate installation performed on a virtual machine running on VMware Workstation. I will be using an .ISO file mounted on the VMs CD/DVD drive.

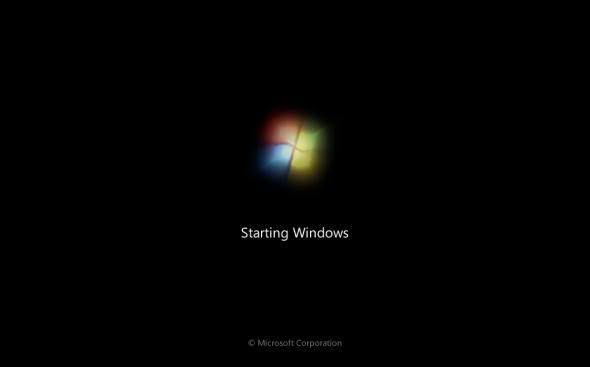

Next, a Starting Windows screen will appear.

The Installation Process

Like in Windows Vista and Windows Server 2008, and unlike previous versions of Windows, Windows 7 does not have a noticeable text phase of the setup process, and it will boot directly into the Graphical User Interface (GUI) mode.

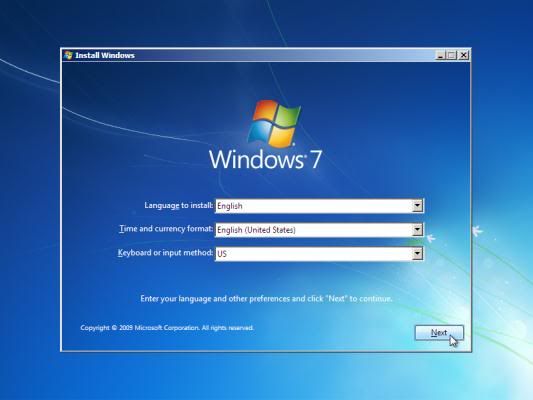

After a few moments you will see the first prompt

Click "Next" unless you want to change some regional settings for the installation process.

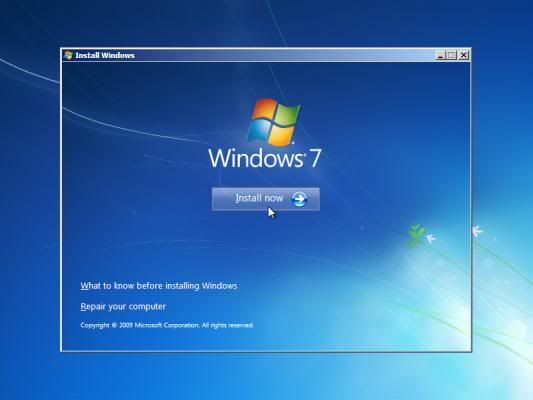

Click on the "Install now" button.

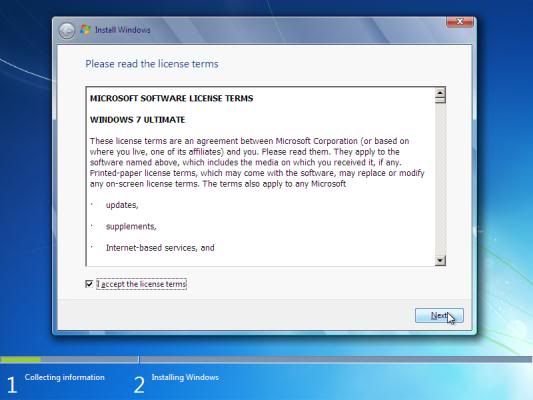

Next, accept the license terms and click on "Next".

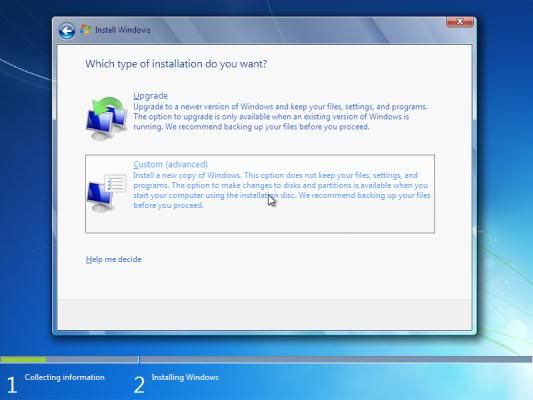

Next, unless you're upgrading an existing Windows installation, press the Custom (Advanced) installation type button. Note that in this case, the Upgrade button is disabled because this specific installation if performed on a new computer without any previous operating system on it.

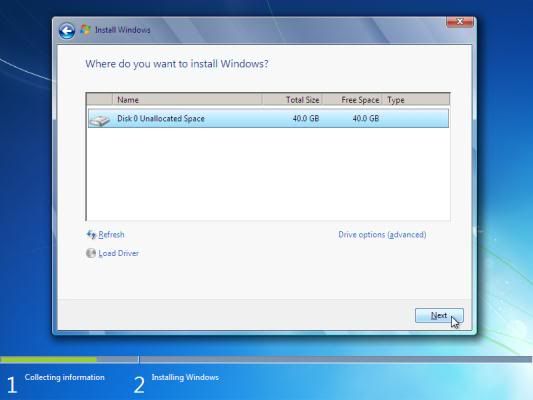

The next phase is to pick the installation partition. Since this computer has a new hard disk that hasn't been formatted before, you will only have the option to create a new partition on it.
If you don't want to specify a specific partition to install Windows on, or create partitions on your hard disk, click Next to begin the installation. If you already have another existing partition with enough free space and want to install the Windows 7 on that partition to create a multiboot configuration, select the partition you want to use, and then click Next to begin the installation. If you want to create, extend, delete, or format a partition, click Drive options (advanced), click the option you want, and then follow the instructions.
Since I don't need to perform any additional task I will just click on the "Next" button. The installation process will then create a partition on all the available disk space, and format it.

The setup process will now begin to copy files from the installation DVD media to the hard disk.

Process could take a while depending on the type of hardware your computer uses. In my VM test sample I've used for this demo, the entire process finished before I could finish writing the previous 3 paragraphs, so it could be pretty quick.

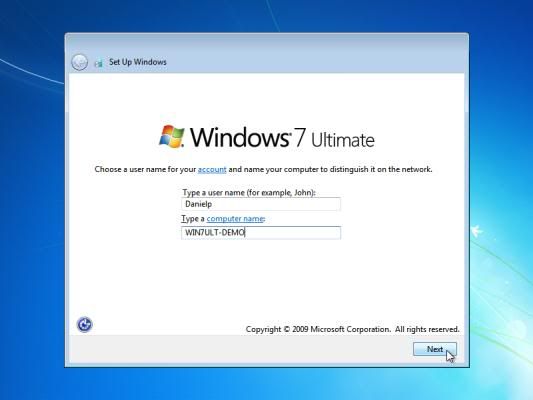

The computer will reboot, and the next thing you'll see is the prompt to set the user's and computer's name. By default, the computer's name will be username-PC, where username is the username you've entered.
Click on "Next".

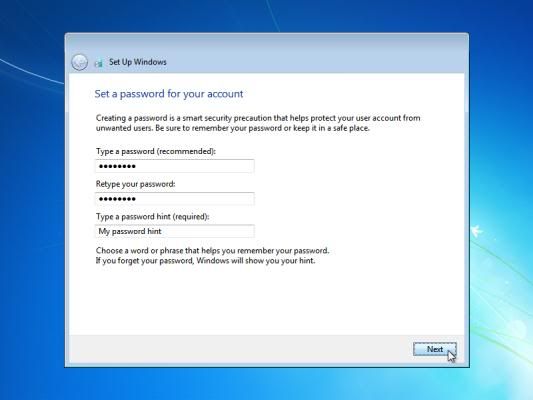

Enter the user's password. Remember this password, as it will be the ONLY user on the system, and unless you create an additional user or enable the built-in administrator account, if you forget this password you'll need to cr@ck it to gain access to the system. The best option would be to choose a complex password made of at least 7 characters or more (something like Pssw0rd or MYpa$$w0rd). You must also enter a password hint.

Click on "Next".

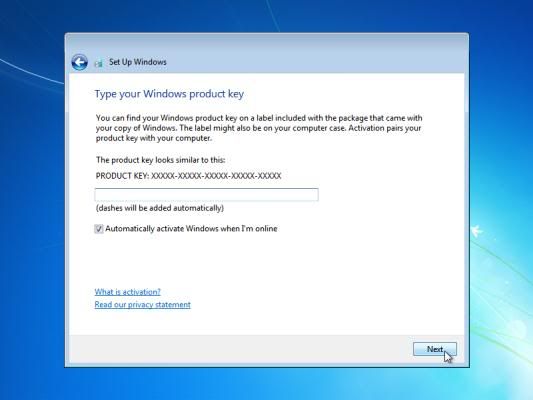

Next, type in your product k*y. If you do not have the product k*y at hand you can still click "Next", and proceed with the installation. You will be asked to enter the product k*y after Windows is installed.

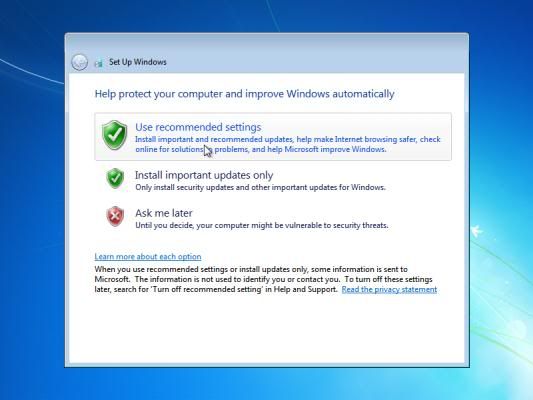

Choose what sort of protection your computer gets. The recommended settings are best for someone that doesn't plan to hide their computer behind a corporate firewall (and even then, in some cases, this would be the best option). If you plan to install a 3rd-party firewall later you can opt to be prompted later. Note that this setting will also have effect on how the computer uses the Microsoft Windows Update (Automatic Updates) features.

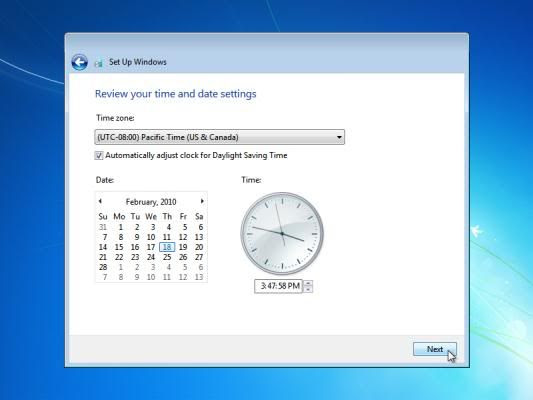

Choose your time zone and location and click on "Next".

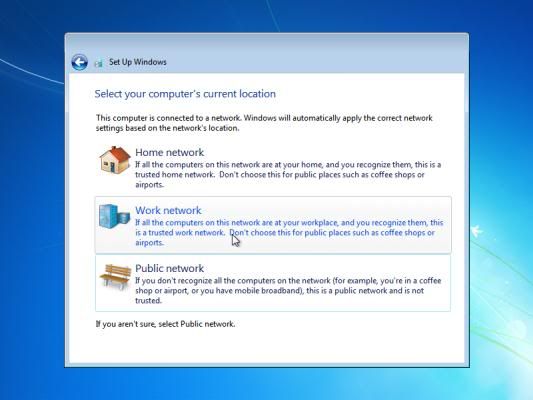

Select your network location type. This setting can be changed later, but do note that choosing a profile will have effect on the Windows Firewall and sharing settings. Click on "Next".
